Technical Parameter:

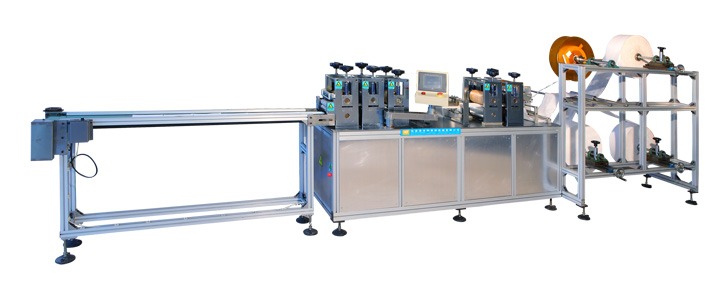

Ø Function: To Produce non woven face mask blank body automatically, including Inerting nose wire, forming, Sealing and cutting finished mask blank.

Ø Power supply: 380V/50Hz or 220V mono phase 3.3KW

Ø Mask Size: 175mm*80-100mm (two or three layers)

Ø Nonwoven (GMS): 10-50g

Ø Capacity: 120 to 150pcs/Min

Ø Dimension(L*W*H):3800mm*500mm*1400mm

Ø Net Weight: about 1000kg

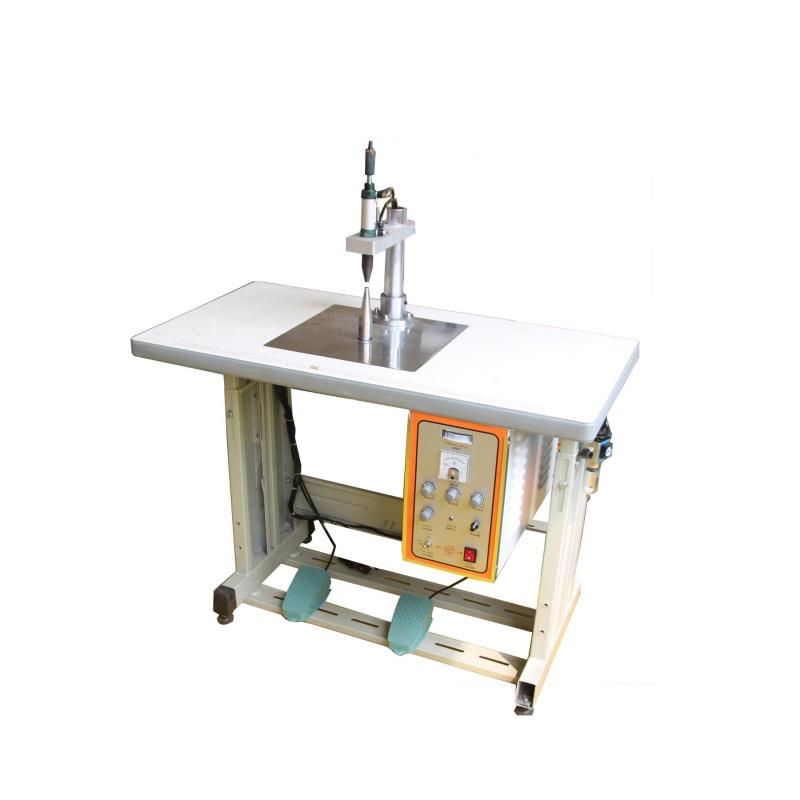

Ultrasonic Welding Machine



Technical Parameter:

Ø Capacity: 5 to 10 pcs/Min(Depending on Raw material condition)

Ø Power supply: 8.5KW (220V/50Hz Monophase)

Ø Compressed Air connection: 0.5 to 0.7Mpa

Ø Overall Dimension:900mm*650mm*1380mm
